Belt Driven Cantilever Slurry Water Pump,Mining Sand Slurry Pump,High Chrome Cr27 Pump
Product Discription
The Depump® slurry pump is the world's standard for the most difficult mill duties. A wide variety
of impellers and shaft seals provide a perfect fit for a wide range of applications. The Depump®
slurry pump provides excellent wear life while maintaining efficiency during the wear cycle providing the
best total operating cost.
Features:
1. Bearing assembly: large diameter shaft with short overhang contributes to long bearing life.
2. Liners: Easily replaceable liners are bolted, not glued to the casing for positive maintenance.
3. Casing: Casing halves of cast or ductile iron provide high operating pressure capabilities.
4. Impeller: Front and rear shrouds have pump out vanes that reduce recirculation and seal contamination.
5. Throatbush: Wear is reduced and maintenance simplified by the use of tapered.
Selection Chart and Performance
TYPE | Allowable Mating Max. power(KW) | Material | Clear Water Performance | Impeller | |||||||
Liner | Impeller | Capacity | Head(H) | Speed(n) | Max.Eff | NPSH | No.of Vanes | Impeller Dia. | |||
(m³/h) | (L/s) | (m) | (r/min) | (%) | (m) | (mm) | |||||
1.5/1B-MAH | 15 | M | M | 12.6-28.8 | 3.5-8 | 6-68 | 1200-3800 | 40 | 2-4 | 5 | 152 |
RU | RU | 10.8-25.2 | 3-7 | 7-52 | 1400-3400 | 35 | 3 | ||||
1.5/1C-MHH | 30 | M | M | 16.2-34.2 | 4.5-9.5 | 25-92 | 1400-2200 | 20 | 2-5.5 | 5 | 330 |
2/1.5B-MAH | 15 | M | M | 32.4-72 | 9-20 | 6-58 | 1200-3200 | 45 | 3.5-8 | 5 | 184 |
RU | RU | 25.2-54 | 7-15 | 5.5-41 | 1000-2600 | 50 | 2.5-5 | 5 | 178 | ||
3/2C-MAH | 30 | M | M | 39.6-86.4 | 11-24 | 12-64 | 1300-2700 | 55 | 4-6 | 5 | 214 |
RU | RU | 36-75.6 | 10-21 | 13-46 | 1300-2300 | 60 | 2-4 | 5 | 213 | ||
3/2D-MHH | 60 | M | M | 68.4-136.8 | 19-38 | 25-87 | 850-1400 | 47 | 3-7.5 | 5 | 457 |
4/3C-MAH | 30 | M | M | 86.4-198 | 24-55 | 9-52 | 1000-2200 | 71 | 4-6 | 5 | 245 |
RU | RU | 79.2-180 | 22-50 | 5-34.5 | 800-1800 | 59 | 3-5 | 5 | |||
4/3E-MHH | 120 | M | M | 126-252 | 35-70 | 12-97 | 600-1400 | 50 | 2-5 | 5 | 508 |
6/4D-MAH | 60 | M | M | 162-360 | 40-100 | 12-56 | 800-1500 | 65 | 5-8 | 5 | 365 |
RU | RU | 144-324 | 40-90 | 12-45 | 800-1350 | 65 | 3-5 | 5 | 365 | ||
6/4S-MHH | 560 | M | M | 324-720 | 90-200 | 30-118 | 600-1000 | 64 | 3-8 | 5 | 711 |
6S-MHH | 560 | M | M | 468-1008 | 130-280 | 20-94 | 500-1000 | 65 | 4-12 | 5 | 711 |
8/6E-MAH | 300 | M | M | 360-828 | 100-230 | 10-61 | 500-1140 | 72 | 2-9 | 5 | 510 |
RU | RU | 324-720 | 90-200 | 7-49 | 400-1000 | 65 | 5-10 | 5 | 510 | ||
10/8E-MM | 120 | M | M | 666-1440 | 185-400 | 10-60 | 600-1100 | 73 | 4-10 | 5 | 549 |
10/8ST-MAH | 560 | M | M | 612-1368 | 170-380 | 11-61 | 400-850 | 71 | 4-10 | 5 | 686 |
RU | RU | 540-1188 | 150-330 | 12-50 | 400-750 | 75 | 4-12 | 5 | |||
12-10ST-MAH | 560 | M | M | 936-1980 | 260-550 | 7-68 | 300-800 | 82 | 6 | 5 | 762 |
RU | RU | 720-1620 | 200-450 | 7-45 | 300-650 | 80 | 2.5-7.5 | 5 | |||
14/12ST-MAH | 560 | M | M | 1260-2772 | 350-770 | 13-63 | 300-600 | 77 | 3-10 | 5 | 965 |
RU | RU | 1152-2520 | 320-700 | 13-44 | 300-500 | 79 | 3-8 | 5 | |||
16/14TU-MAH | 1200 | M | M | 1368-3060 | 380-850 | 11-63 | 250-550 | 79 | 4-10 | 5 | 1067 |
20/18TU-MAH | 1200 | M | M | 2520-5400 | 700-1500 | 13-57 | 200-400 | 85 | 5-10 | 5 | 1370 |

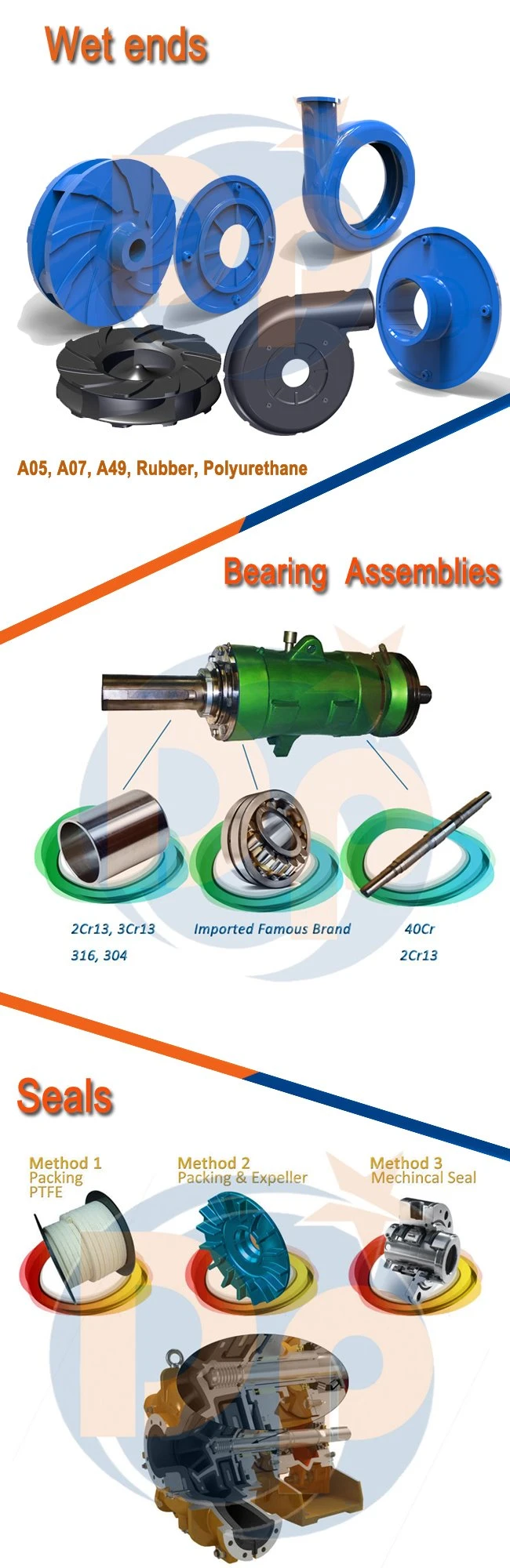

Pump Parts Material
Metal Lined Pumps | Rubber Lined Pumps | ||
Part Description | Material Specification | Part Description | Material Specification |
Base | Cast Iron | Base | Cast Iron |
Shaft | 4140 High Tensile Steel | Shaft | 4140 High Tensile Steel |
Bearing Assembly | Timken(Cast Iron Body) | Bearing Assembly | Timken(Cast Iron Body) |
Shaft Sleeve | 420 Stainless Steel | Shaft Sleeve | 420 Stainless Steel |
pump Casing | Cast Iron | pump Casing | Cast Iron |
Frame Plate Liner | 27% Chrome White Iron | Frame Plate Liner Insert | Rubber |
Volute Liner | 27% Chrome White Iron | Cover Plate Liner | Rubber |
Impeller | 27% Chrome White Iron | Impeller | Rubber Coated High Tensile Steel |
Throat Bush | 27% Chrome White Iron | Throat Bush | Rubber |
Joint Ring | Rubber | Cover Plate | Cast Iron |
Cover Plate | Cast Iron | Stuffing Box | Cast Iron |
Stuffing Box | Cast Iron | Expeller | 27% Chrome White Iron |
Expeller | 27% Chrome White Iron | Expeller Ring | Natural Rubber |
Expeller Ring | Natural Rubber | Bolts | Zinc Plated Steel |
Bolts | Zinc Plated Steel | O-rings | Nitrile Rubber |
O-rings | Nitrile Rubber | Seals | Rubber |
Seals | Rubber |
Application
- Mining
- Coal
- Metallurgy
- Civil Construction
- Heavy Industry
SINCE 1998
20+ years manufacting and exporting pump experience,more options and solutions available for you.
- Advanced equipment
- Professional engineer
- Updated design
- Excellent quality
Our Advantages
- Factory direct price
- Professional knowledge and attentive service
- Strict quality inspection and timely delivery
- Highly value every order, no matter how small it is.
- offer confidentiality agreement "business secret contract"
- Product warranty:lifetime, no matter how long to use,if there is air hole in the flow parts,please return it,will give you a new one to replace.
FAQ
A: What kind of company you are?
Q: Shijiazhuang Depon Pump Company is professional manufacturer in pumps. After accumulation and development of many years, we have formed a complete system of pump design, selection, application, manufacture, marketing and maintenance. We have passed CE, SGS certificate. Our customers are at home and abroad. Hope to coorperate with the worldwide friends.
Q: What's your MOQ?
A: Trial sample order is OK.
Q: What are your payment terms?
A: T/T, L/C, D/P, D/A or as customer required
Q: How about the warranty?
A: One year warranty for pumps, it depends on other pump working condition details.
Q: What is the delivery time?
A: 7-30 days according to customer quantities.
Q: Can you do OEM brand?
A: Yes, Welcome.
Q: What information should I offer to get pump solution?
1, Head: m
2, Flow: m3/h
3, Max Solid size: mm
4, Particle shape (smooth or sharp):
5, Medium pH level:
6,Specific Gravity of the Medium:
7, Temperature:
8, Drive type:
9. Power supply: Electric or Dlesel
10, Voltage and Frequency of the Motor:
